Wheel loader UR956
Products Description
Product Introduction:
Specification:
| Performance | |
| Rated Load | 5000 kg |
| Overall Weight | 17100kg |
| Rated Bucket Capacity | 3m³ |
| Max. Dump Height | 3150mm |
| Max. Dump Reach | 1250mm |
| Overall dimension (L×W×H) | 8360×3050×3482mm |
| Min. Turning Radius | 6640mm |
| Engine | |
| Model | Weichai SteyrWD10G220E21 |
| Type | Inline Water Cooling Dry Cylinder Injection |
| Rated Power | 162kw / 2000r/min |
| Transmission System | |
| Torque Converter | YJ375 |
| Max. Speed | 38km/h |
| Drive Axles | |
| Wheel Base (mm) | 3340mm |
| Wheel Tread | 2250mm |
| Min. Ground Clearance | 460mm |
| Hydraulic System | |
| System Working Pressure | 18Mpa |
| Fuel Tank Capacity | 300L |
| Tyre | |
| Type Specification | 23.5-25 |
| Front Tyre Pressure | 0.4Mpa |
| Rear Tyre Pressure | 0.35Mpa |

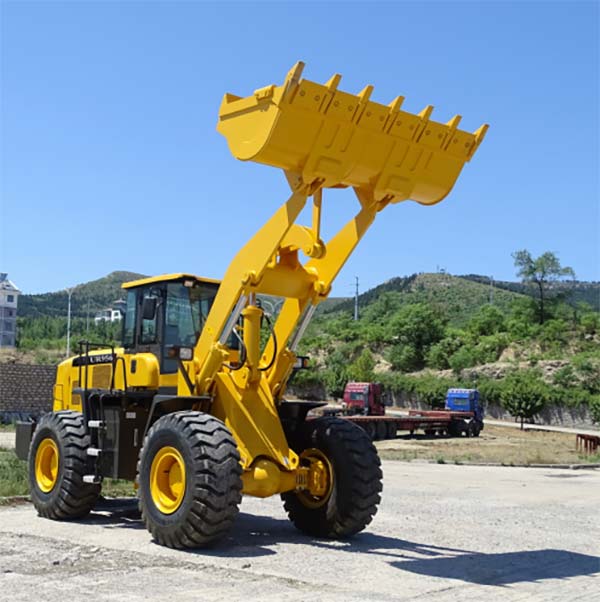

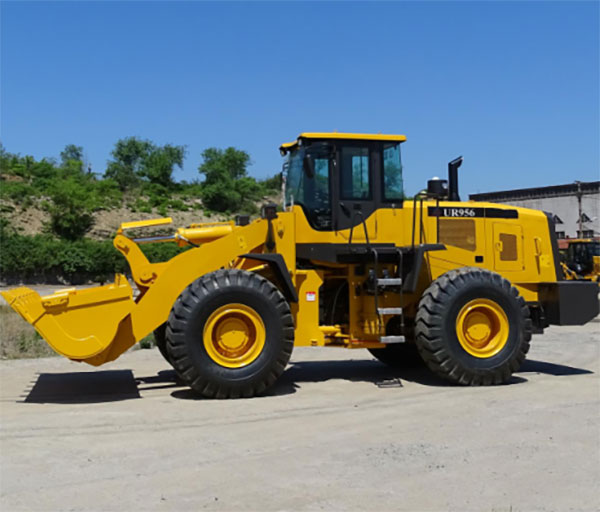

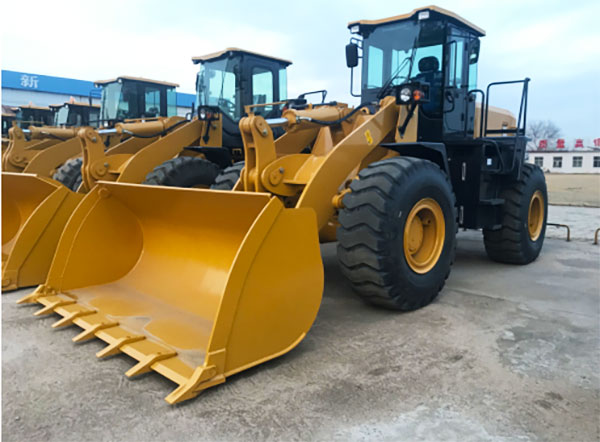

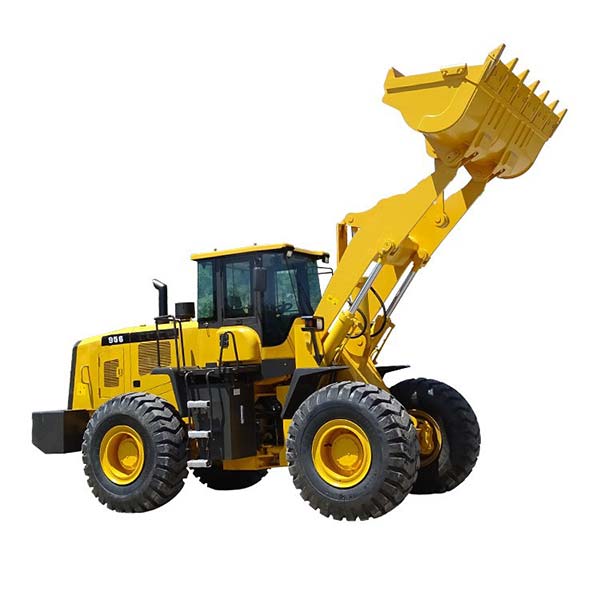

Product Detail:
