Skid steer loader HY380
Products Description
| Item | Metric | Inch | |||||||
| Max working height（A） | 2115 mm | 83.3 inch | |||||||
| Max pin height （B） | 1856 mm | 73.1 inch | |||||||
| Max dump height（C） | 1460 mm | 57.5 inch | |||||||
| The highest point discharge distance（D） | 388 mm | 15.3 inch | |||||||
| Bucket swing angle（β） | 55° | 55° | |||||||
| Bucket unloading angle（γ） | 30° | 30° | |||||||
| Opening-closing angle（θ） | 25° | 25° | |||||||
| Angle of departure（α） | 8° | 8° | |||||||
| Total height （H） | 1205 mm | 47.4 inch | |||||||
| The height from the ground（F） | 90 mm | 3.5 inch | |||||||
| Wheelbase （G） | 636 mm | 25.0 inch | |||||||
| No bucket length（J） | 1752 mm | 69.0 inch | |||||||
| Total width （W） | 1033 mm | 40.7 inch | |||||||
| Bucket width （K） | 980 mm | 38.6 inch | |||||||
| Total length（L）（with bucket） | 2206 mm | 86.9 inch | |||||||
| Turning radius (R) | 1307 mm | 51.5 inch | |||||||
| Engine | Rated power | 21HP/23HP | |||||||
| Rotating speed（rpm） | 3600 | ||||||||
| Noise（Db） | ≤95 | ||||||||
| Hydraulic System | Hydraulic pressure（Mpa） | 17 | |||||||
| Cycle time（s） | Raise | Dump | Lower | ||||||
| 4.27 | 1.34 | 3.31 | |||||||
| Performance parameters | Metric | inch | |||||||
| Load weight (kg) | 200 Kg | 441 Lb | |||||||
| Bucket capacity | 0.15 m3 | 5.33 ft3 | |||||||
| Max lifting power | 375 Kg | 827 Lb | |||||||
| speed | 0-5.5 Km/h | 0-3.4 mlie/h | |||||||
| Operating weight | 890kg | 1958lb | |||||||
| Tire type | Chevron tire | 18*6.5-8 | |||||||

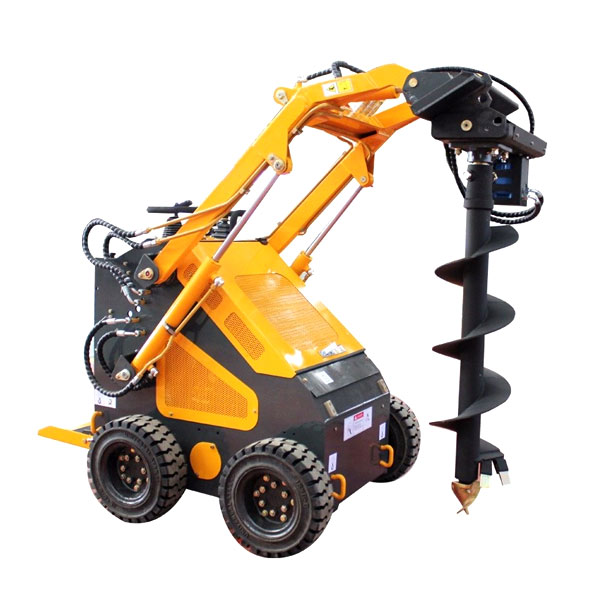

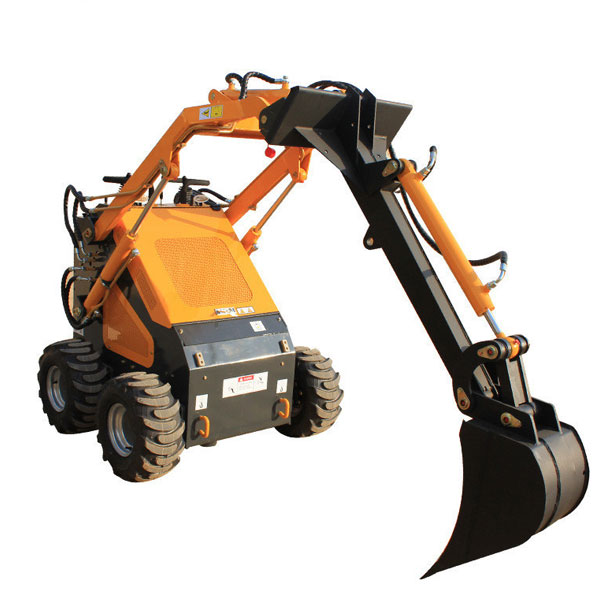

Dingo similar model Hysoon HY380 mini digger loader image review
1. Engine: 23hp American Briggs& Stratton Petrol Engine
2. Pump: Gear Pump or Italian piston pump can be chosen.
3. Valve: Italian valve
4. Tires: Engineering Tires. Optional: Solid Tires, Grass Tires, Crawler(track).
5. With a standard bucket.
6. Optional Configuration: Italy Servo Controller(Joystick).
