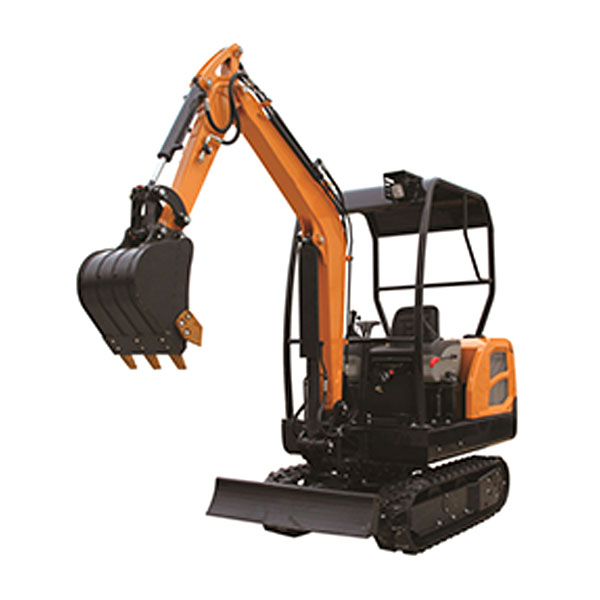

Excavator UR18
Products Description
Specification:
| Main Specifications | Overall Dimensions | ||
| Operating Weight | 1800 kg | Overall Length*Width*Height | 3725*990*2300 mm |
| Bucket Capacity | 0.06 m³ | Track Grounding Length | 1250 mm |
| Bucket Width | 450 mm | Track Shoe Width | 230 mm |
| Boom Length | 1823 mm | Track Gauge | 740 mm |
| Arm Length | 1130 mm | Min Ground Clerance | 160 mm |
| Performance | Min Front Swing Radius | 1120 mm | |
| Swing Speed | 10 rpm | Tail Swing Radius | 1080 mm |
| Travel Speed | 0-2.2Km/h | Dozer Blade Width | 990 mm |
| Grade Ability | 25 ° | Operating Range | |
| Ground Pressure | 34 Kpa | Max Digging Radius | 3920 mm |
| Bucket Digging Force | 15.2 KN | Max Digging Depth | 2140 mm |
| Arm Digging Force | 8.7 KN | Max Digging Height | 3330 mm |
| Max Traction Force | 12.5 KN | Max Dumping Height | 2440 mm |
| Engine | Boom Offset (Left/Right) | 240/460 mm | |
| Model | Kubota | Boom Swing Angle L/R | 73/47 ° |
| Rated Power | 14 kw/2200 rpm | Dozer Blade Size Width*Height | 990*210 mm |
| Max Torque | 107.8 N.m/rpm | Dozer Blade Lift/Digging | 228/218 mm |
| Displacement | 1.642 L | Pump type | gear pump |
| Cylinders | 3 | Discharge | 227L/min |
| Bore and Stroke | 88*90 mm/85*90 mm | Working cylinder×number | 110mm×2 |
| Cooling Type | Water | ||

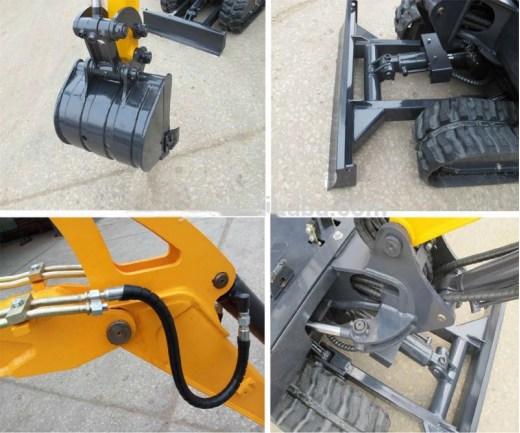

Details:

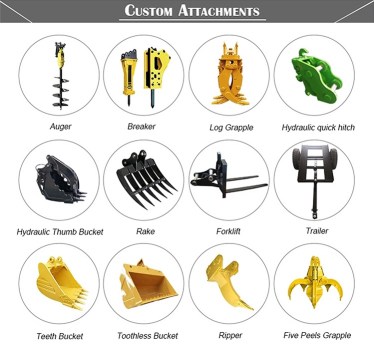

Attachments:
