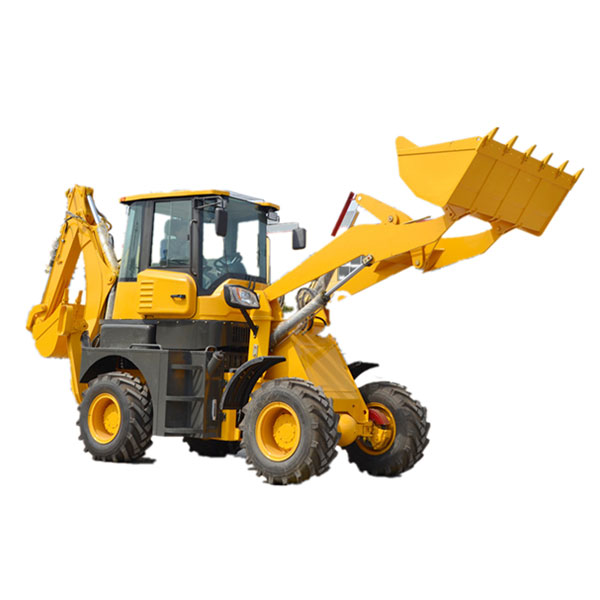

Backhoe loader WZ30 25
Products Description
| Product name | Backhoe loader |
| Model | WZ30-25 |
| Overall dimension (L*W*H) | 7145 * 2300 * 3355 mm |
| Total weight | 7800 kg |
| Backhoe performance | |
| Digging bucket capacity | 0.3 m³ |
| Max. Digging depth | 4020 mm |
| Max. Digging height | 5330 mm |
| Max. Digging radius | 5140 mm |
| Boom rotary angle | 190° |
| Loader performance | |
| Loading bucket capacity | 1.3 – 1.5 m3 |
| Max. Lifting height | 4950 mm |
| Max. Dump height | 3500 mm |
| Max. Dump distance | 1105 mm |
| Rated load capacity | 2500 kg |
| Boom lifting time | 3.5 s |
| Boom falling time | 2.5 s |
| Total cycling time | 7 s |
| Engine | |
| Model | YUCHAI 4105 (Turbocharged)
CUMMINS 4BT3.9-C100 |
| Rated power | 85kw |
| Max. Flow | 63 m/r |
| Working pressure | 18~20 MPa |
| Transmission | |
| Grade ability | 30% |
| Turning radius | 5200 mm |
| Gear shift | Forward 4 and reverse 4
(with mechanical high/low speed) |
| Travel speed | 38 km/h |
| Min. Ground clearance | 320 mm |
| Tire | 16/70-20/24 |
