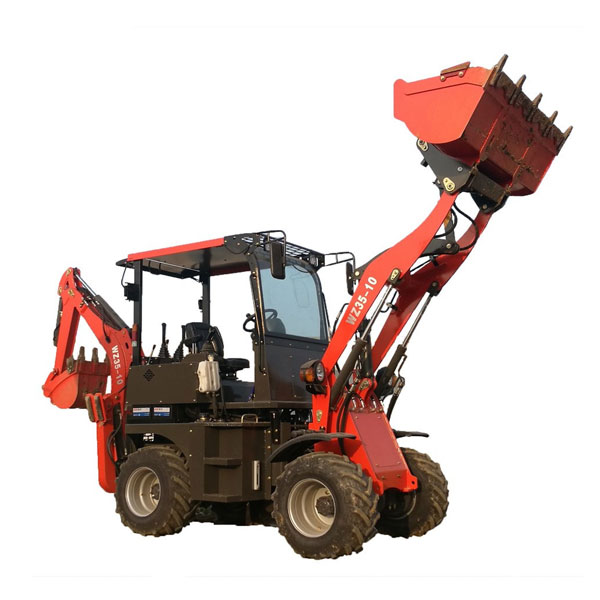

Backhoe loader
Products Description
| Product name | Backhoe loader |
| Model | WZ35-10 |
| Overall dimension (L*W*H) | 5600 * 1680 * 2730 mm |
| Operating weight | 3500 kg |
| Backhoe performance | |
| Digging bucket capacity | 0.1 m³ |
| Max. Digging depth | 2630 mm |
| Max. Digging height | 3700 mm |
| Max. Digging radius | 3398 mm |
| Boom rotary angle | 190° |
| Loader performance | |
| Loading bucket capacity | 0.8 m³ |
| Max. Lifting height | 3350 mm |
| Max. Dump height | 2650 mm |
| Max. Dump distance | 1325 mm |
| Rated load capacity | 1000 kg |
| Boom lifting time | 2.5 s |
| Boom falling time | 2.5 s |
| Total cycling time | 5 s |
| Engine | |
| Model | XINCHAI 490 |
| Rated power | 33 KW |
| Max. Flow | 25 m/r |
| Working pressure | 18~20 MPa |
| Transmission | |
| Grade ability | 30% |
| Turning radius | 3000 mm |
| Travel speed | 18 km/h |
| Min. Ground clearance | 230 mm |
| Tire | 31*15.5-15 |
Product Details:
Attachments:
Packing&Shipping:
